Integration Options

Overview

All integration options support one-time and recurring payments. The difference among the integrations lies in the merchant's needs and willingness to spend time and effort for the checkout customization.

Plugins Full Page Embedded Iframe Payform Web SDK Direct Post Host2Host
Integration effort Minimal Minimal Minimal Minimal Average Experienced
UI customization None None None None Full appearance Full appearance
3D Authentication Handling Automated Automated Automated Automated Automated Partially or Fully Manual
MPI Use Cardaq MPI Cardaq MPI Cardaq MPI Cardaq MPI Cardaq MPI Cardaq MPI or any third party MPI

Plugins

Plugins allow you to receive card and alternative payment method payments from your customers on your e-commerce website.

Cardaq can be easily integrated into the billing process of e-commerce websites and mobile apps. If your online store is using Prestashop, Magento, OpenCart or WooCommerce, you can download and set up the ready-made plugin.

Log in to your Merchant Portal account to download a free pre-made payment plugin and set it up in a couple of minutes with almost no prior technical knowledge necessary.

Supported checkout options:

  • Embedded Iframe: allows you to keep the customers on your website by collecting payment data inside an iframe and processing the 3DS authentications in a modal window;
  • Full Page: automatically redirects your customers to the Gateway's full hosted payform outside of your store for payment method selection and payment data collection.

Important! You can select the preferred checkout method in the plugin settings.

Supported payment methods:

If you are using alternative payment methods with a delayed success confirmation, such as Open Banking, the payment status may get stuck in an intermediate phase after the creation (pending, awaiting payment, or on hold: depending on the e-commerce platform) on your e-commerce website's side. In such cases you must check the status in your Cardaq merchant portal and move the order manually through the payment statuses on the e-commerce website's side.

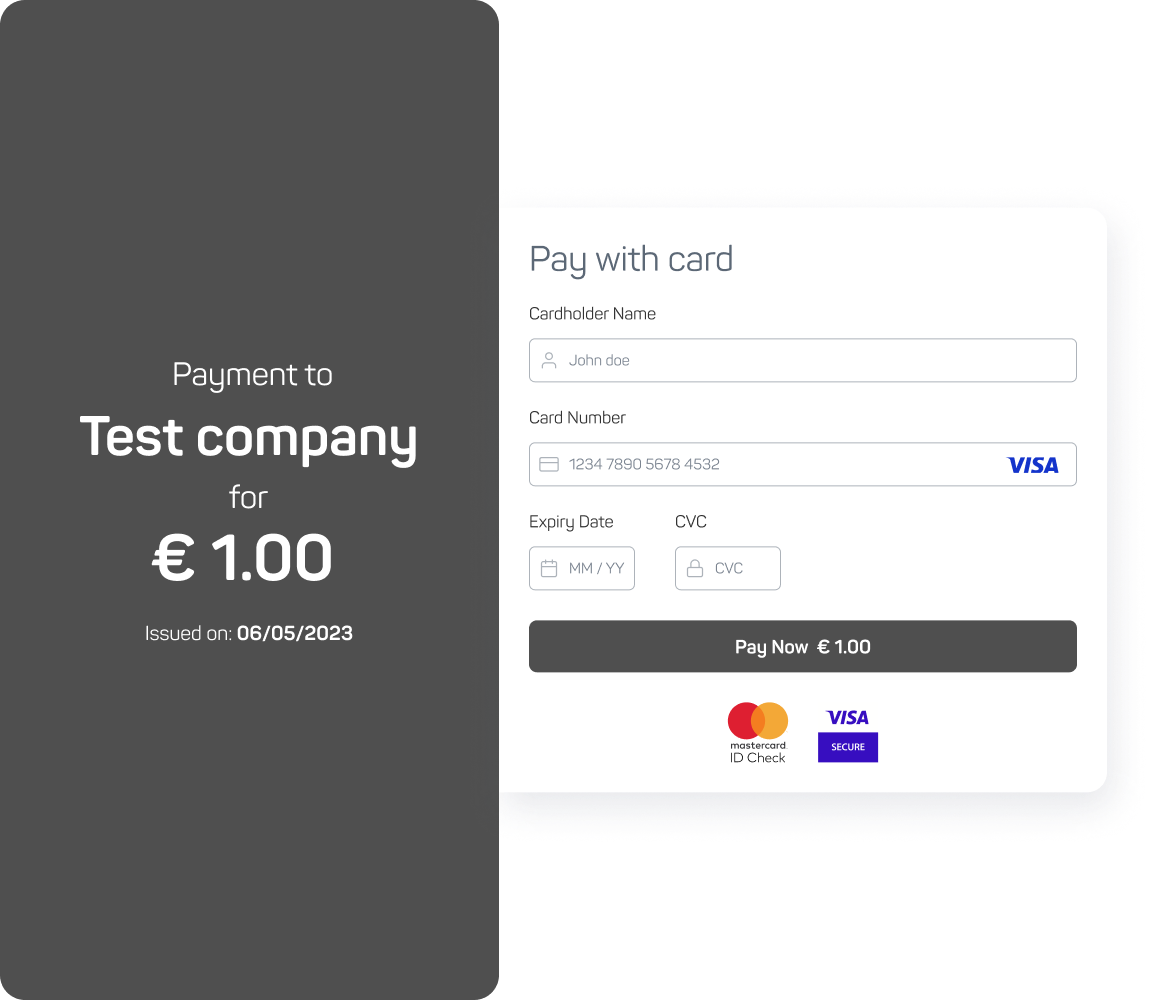

Full Page

The Full Page integration starts with an order creation. After the order creation, the Full Page checkout URL is returned. The merchant's task is to redirect their customer to this URL, where the payment data gets collected and, if applicable, automatic 3D checks applied. Cardaq Gate will manage the order process from this point. Afterwards, Cardaq Gate will navigate your client’s browser back to your website, using the redirect URL you have configured. All payment data is saved on the Cardaq side. The Full Page integration is asynchronous; hence, after the data collection, 3D checks, and the payment execution, a webhook is returned with the final status. This solution is best suited for merchants who prefer a quick and simple integration.


Embedded Iframe

The Embedded Iframe integration starts with an order creation. After the order creation, the Embedded Iframe checkout URL is returned. The merchant's task is to place this URL in the desired spot on their website, so their customers can pay without navigating away from it. All payment data is saved on the Cardaq side, and, if applicable, the 3D checks are applied. The Embedded Iframe integration is asynchronous; hence, after the data collection, 3D checks, and the payment execution, a webhook is returned with the final status. This solution is best suited for merchants who prefer a quick and simple integration.


Payform Web SDK

Payform Web SDK is a JavaScript library that makes it easier to integrate a payform into your website.

Installation

Before using this library, ensure it is linked from the payform URL https://payments.decta.com/sdk/sdk.min.js in the <head> tag or before the initialization code on your website. Do not copy and store locally the file contents because thus you will miss the updates, which can eventually lead to the service malfunctioning.

Embedded Code

Put the placeholder element in your DOM structure, where you want the payform to be rendered <div data-payment-sdk-form></div>. It can be any element but it has to have the data-payment-sdk-form property. If no such element is found, then the SDK will display an error in the browser console. The wrapper element can be styled with CSS, according to your requirements.

In order to render the form, you must execute the initialization code. You can also load and render it conditionally, depending on your needs. Either way, make sure that the code is executed after the library file loading has been completed.

Before rendering the form, create the transaction ID through the Rest API and then pass the payment ID parameter to JS function.

Example

Please note that 1e118408-a091-4b4e-96bf-e60e1e0e2ff0 is the demo ID and is used only for demo purposes. You must replace it with your own one.

<div data-payment-sdk-form></div>
<script>
  const onPayformload = () => {
    PaymentSdk.Form.create({ paymentId: '1e118408-a091-4b4e-96bf-e60e1e0e2ff0' });
  }
</script>
<script type="module" src="https://payments.decta.com/sdk/sdk.min.js" onload="onPayformload()"></script>

Direct Post

Not all acquirers support this integration. Check with your account manager if this option is available to you!

The Direct Post integration starts with an order creation. With this integration method, customers enter their card data into a payment form located on the merchant's website (no redirects or iframe embedding is needed).

Use this element <form method="POST" action="$url"> on your website, where $url is the address you received in the response after creating the order. Once the customer enters their card credentials, they can submit the form and posts their data to our system. We will then take care of their navigation, making sure they pass 3D Secure checks and are appropriately redirected back to either the success_redirect or failure_redirect URL once their order is completed.

Direct Post allows you to keep the card data entry form on your website and fine-tune the checkout process, according to your needs. Additionally, using this method removes the need to comply with the full set of PCI DSS SAQ level D legal requirements and comply with the simpler A-EP instead.

Your brand may be required to provide certain client information for all orders. For the Full Page and Embedded iframe integration methods, the client would be automatically asked to input this information, using the Gate forms. For the case of Direct Post you must provide these fields yourself in the client object. You can check whether your brand has any such fields, using the /brands/:id API. All required client fields will be indicated under the default_request_client_info key.

Process Flow

  1. Create an order . Make sure to provide success_redirect and failure_redirect values in the request body. Save the id of the created order and the direct_post URL provided in the response;
  2. Use the <form method="POST" action="$url"> element on your website, where $url is the direct_post from the previous step. Aside from a method to trigger the native DOM submit event (e.g. <input type="submit">), it should contain the following input fields:
    1. cardholder_name - cardholder's name - up to 40 characters, ASCII letters only (as written on the card);
    2. number - card number - 13-19 digit integer;
    3. exp_month - card expiration month - integer in the [1..12] range;
    4. exp_year - card expiration year - integer in the [18..99] range;
    5. csc - CVC2/CVV2 code - 3 digit integer;
    6. save_card - must be passed to payform only when setup_future_use parameter has been passed in the order creation request - CheckBox.
  3. After the customer has entered their data and submitted the form, Gate starts to process the order. Once that is done, the customer is redirected back to your website, using the success_redirect or failure_redirect URL. A payment.paid or payment.failed event is emitted. If you have created webhooks for these events, Gate will also perform a server-to-server callback to your system. Once either the customer navigates to your website or you receive the webhook callback, mark the corresponding order as complete in your system. We advise not to rely on the webhook or, especially, the customer navigation alone, so to avoid the risk of brute force attacks and fake requests. Doublecheck the status of the order with Gate (for that you will need the id you saved on the first step) and make sure the status field is paid.

Host2Host

Best suited for Gateway to Gateway integrations. Not all acquirers support Host2Host. Check with your account manager if this option is available to you!

API_DO_URL

The functionality of payments through api_do_url links allows you to use the most flexible payment execution flows, including storing customers' card data on your side for recurring payments and usage of your own or a third-party MPI. By using this functionality, you are able to create your own payment forms embedded into websites and mobile applications, or integrate them into your system in any way you need. Using api_do_url payment execution, you can provide the following types of transactions to your customers:

  • One-Step/Two-Step transactions (ordinary debit payments);
  • P2P transactions (money transfers between accounts of different individuals);
  • B2P transactions (money transfers, used by companies engaged in various types of payments to individuals: insurance claims, healthcare reimbursements, legal settlements, loan disbursements, etc.).

Important! As a merchant you have to have a PCI DSS certificate (SAQ level D) to be able to use api_do_url functionality.

In response to the request for a debit or credit transaction to Cardaq Gate API, you will get api_do_url link for the payment execution. You can use it to pass the customer's card data to Cardaq side and finish the payment through custom payment forms, recurring payments, subscriptions, or any other payment flow you have implemented on your side. To execute payment, using api_do_url, you need to pass customer's card credentials to Cardaq side through an ordinary http POST request to the api_do_url link with a JSON serialized body, constructed according to the specification below.

Process Flow

For the Host2Host integration option, the payment data collection and sometimes also 3D checks are performed on the merchant's side. The flow for the Host2Host integration is as follows:

  1. Create an order request;
  2. Create a POST request to payment api_do_url*;
  3. Perform 3DS authentication (conditional).

*The functionality of payments through api_do_url links allows you to use most flexible payment execution flows, including storing customers' card data on your side for recurring payments and the usage of your own or a third-party ACS servers. By using this functionality, you are able to create your own payment forms embedded into websites and mobile application, or integrate them into your system in any way you need.

Important! As a merchant you have to have a PCI DSS certificate (SAQ level D) to be able to use api_do_url functionality.

Request Example

Step 1: Minimal body request to POST payment api_do_url

{
    "cardholder_name": "Adam Smith",
    "card_number": "4111111111111111",
    "exp_month": 6,
    "exp_year": 23,
    "csc": "010",
    "save_card": false,
    "ip_address": "198.51.100.42"
}

This request may differ for some payment scenarios:

  1. Payment Method Saving
  2. Recurring
  3. 3DS Authentication
